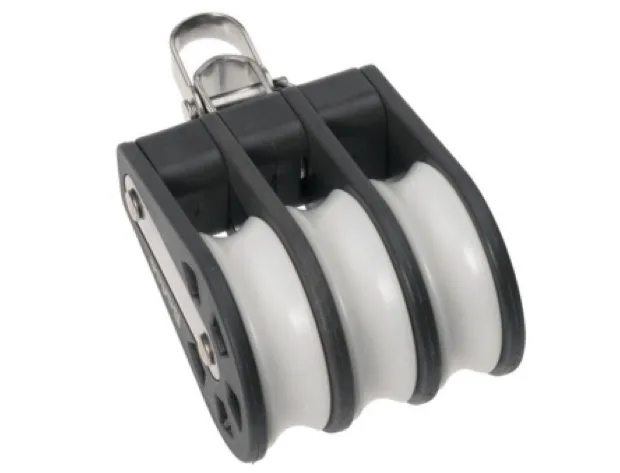

A strong, lightweight block for use on dinghies, dayboats and light cruising yachts. Ideal for mainsheet, vang, lead blocks or wherever a powerful and compact purchase tackle is required.
Removable shackle that can be set in-line or at 90° to the sheave.
Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of load

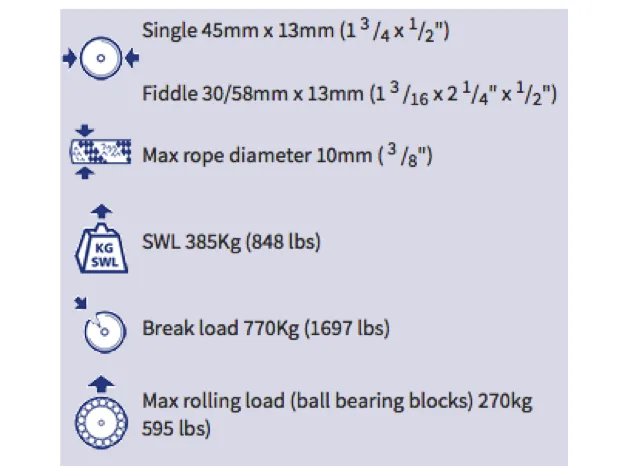

Dimensions & Weights
- Sheave size: 45mm x 14mm (1 3/4 x 35/64")
- Fiddle: 30/58mm x 14mm (1 3/16" / 2 1/4" x 35/64")
- Max rope diameter: 10mm (3/8")
- SWL: 385kg (848lbs)
- Break load: 770Kg (169 lbs)
- Length: 104mm
- Weight: 183g
