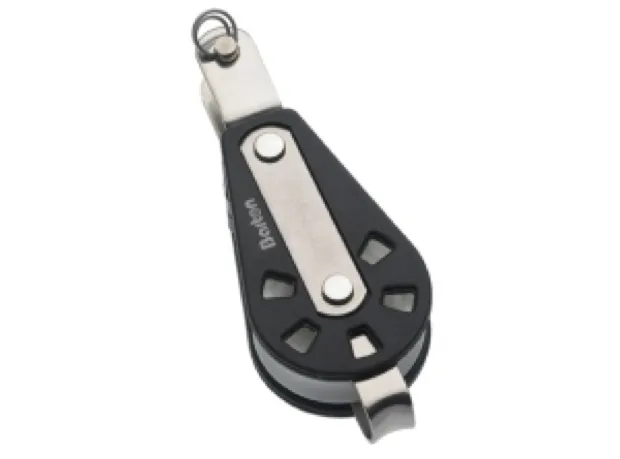

Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

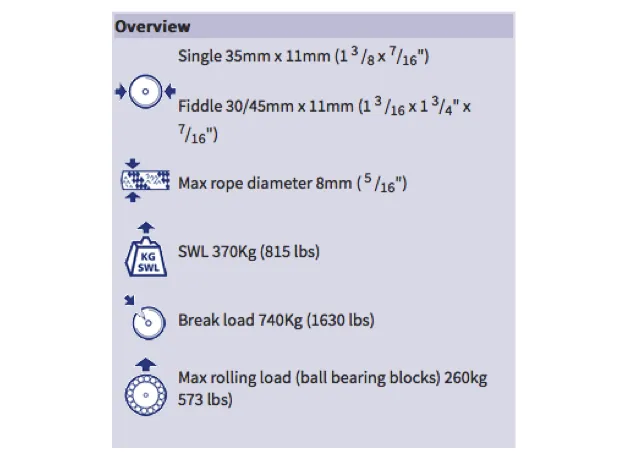

Techy Bits & Dimensions
- Sheave size: 35mm x 12mm (1 3/8 x 15/32")
- Fiddle: 30/34mm x 12mm (1 3/16" / 1 3/4" x 15/32")
- Max rope diameter: 8mm (5/16")
- SWL: 370kg (815lbs)
- Break load: 740Kg (1630 lbs)
- Length: 97mm
- Weight: 63g
Important note - break loads
- Where break and safe working loads are stated, it is assumed that all sheaves are evenly loaded as in a purchase tackle. Uneven loading, or loading of one sheave in a double or triple block, will severely affect strength quoted. If unsure, please seek further assistance.
